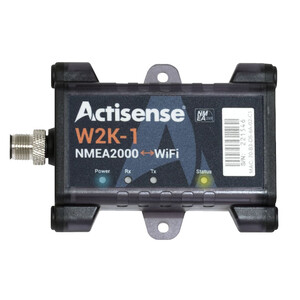

Actisense W2K-1 Wi-Fi Gateway
£220.00
W2K-1 NMEA 2000® to Wi-Fi Gateway
The W2K-1 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.
Transfer data from an NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to the W2K-1 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine. Actisense-i is a suite of diagnostic tools and health checker for your network.
Fully compatible with the industry’s most popular apps.
Actisense Product Specification
Power
Supply Voltage (NMEA 2000 Port) 9 to 30V DC
Supply Current (NMEA 2000 Port) 70mA (avg.) @ 12V DC
100mA (avg.) @ 9V DC
Load Equivalent Number (LEN) 2
Supply protection Continuous reverse polarity protection
and transient overvoltage protection to 40V
Wi-Fi Radio
Compatibility IEEE 802.11 b/g/n
Speed 802.11n up to 150Mbps
Frequency Band 2.4GHz ~ 2.5GHz
Max Output power 20 dBm
Antenna Integrated internal antenna
Range (Open space) 30 meters
Security WPA_PSK, WPA2_PSK, WPA_WPA2_PSK
Configuration
IP support Supports TCP and UDP broadcast
Data servers Three separate data servers
Data protocols NMEA 0183 & Five proprietary
Security SSID and Password configurable (Unique defaults per device)
Diagnostics
Power LED Blue
NMEA 2000 Tx LED Orange
NMEA 2000 Rx LED Green
Status LED Yellow
micro SD card 8GB Industrial Grade, FAT32
Mechanical
Housing Material (body) Polycarbonate
Housing Material (endcaps) PBT
NMEA 2000 Connector M12 Male (A polarised) connector moulded into case
NMEA 2000 Connector Material Nickel plated brass
Weight 80g
Dimensions 106mm (L) x 73mm (W) x 24mm (H)
Environmental
Environmental Protection IP67
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Recommended Humidity 0 – 93% RH
Approvals and Certifications
NMEA 2000 Certified
RoHS and REACH compliant
RF Module certification FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC
EMC EN 301489-1 V2.2.0:2017
EN301489-17 V3.2.0:2017
FCC part 15b, ICES-003
ANSI C63.4:2014, Class B
Radio EN 300 328
Guarantee 5 years
Ordering and Delivery
Devices usually go out to you via Parcelforce Worldwide though if you want something different let us know at the time of order.
Once we have a firm order from you we will confirm the shipping cost which will vary depending on your location.
